名稱： 全反射太陽光模擬器150W
型號： SS150
品牌： 努美科技/Sciencetech
使用150W光源的AAA級太陽光模擬器，并繼續通過高效率的系統進行創新。 SS150是Sciencetech**小的全反射型號，使其極為便攜且易于使用。專有的全反射設計使用鍍金屬的鏡面，并在不影響折衷的情況下使整個光譜通過。 與基于折射的系統相比，這是明顯的優勢，基于折射的系統受到所使用的透明材料的特性的限制。
特征
? AAA級太陽光模擬器
? 氙氣短弧燈
? 全反射光學系統
? 無色差
? 多種可用的過濾器
? 模塊化設計
? 許多可選組件
應用領域
? 光伏測試
? 暴露測試
? 輕度漂白
? 高紫外線測試
不均勻度
| Item Number | Model # | Target Diameters (cm) 1 Sun | ||
| Class A | Class B | Class C | ||
| 160-9001 | SS150 | 5 | 6.5 | 7.5 |
光譜匹配
| Range (nm) | ASTM AM 1.5G | Sciencetech FRSS AM 1.5G | ASTM AM 0 | Sciencetech FRSS AM 0 | Class A Match |
| 300-400 | 8.00% | 7.30% | PASS | ||
| 400-500 | 18.40% | 15.12% | 16.40% | 17.70% | PASS |
| 500-600 | 19.90% | 17.54% | 16.30% | 17.00% | PASS |
| 600-700 | 18.40% | 19.67% | 13.90% | 14.10% | PASS |
| 700-800 | 14.90% | 15.63% | 11.20% | 10.50% | PASS |
| 800-900 | 12.50% | 12.34% | 9.00% | 9.20% | PASS |
| 900-1100 | 15.90% | 19.70% | 13.10% | 14.00% | PASS |
| 1100-1400 | 12.20% | 10.20% | PASS |
技術規格
| Collimation Angle (± degrees) | 2.5 degree p ergence |
| Typical Power Output(mW/cm^2 at target ) | 100 |
| Uniformity | <2% |
| Uniformity Classification | A (ASTM E927-05) |
| Temporal Instability | <2% |
| Temporal Instability Classification | A (ASTM E927-05) |
| Spectral Match | See table |
| Spectral Match Classification | A (ASTM E927-05) |
| Working Distance (cm) | 76 +/- 2.5 cm |
| Lamp Power Requirements | 150W |
| Line Regulation Requirement | 0.01% |

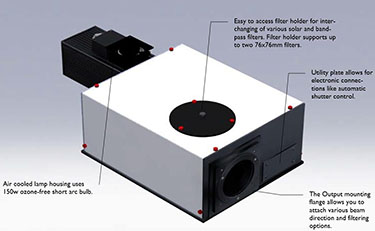

可以配置Sciencetech的全反射太陽能模擬器來滿足您的要求。
均化器可以被定制為包括計算機可控制的百葉窗，并且燈罩可以被定制為包括光強度穩定器。
還提供了一系列太陽能電池卡盤，包括真空夾，熱電或水冷，微型定位器以及完整的IV測試軟件和硬件等選件。
SS150型可以安裝在垂直支架上，以進行向下操作。

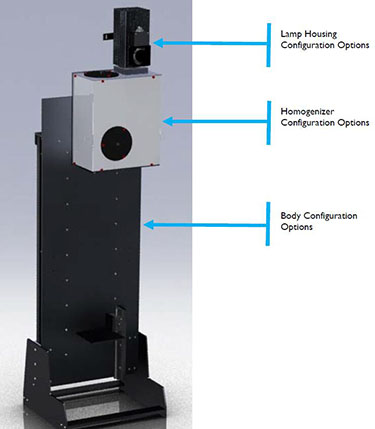

配置選項
| Lamp Housing Configuration Options | |
| (FS-02) Light Intensity Stabilizer | 115-9021 |
| Spare Lamp, 150W Xe, Ozone Free | 650-0055 |
| Homogenizer Configuration Options | |
| (SSES) Computer Controlled Shutter | 160-8004 |
| (CTBT) Beam Turner Assembly | 160-9009 |
| Body Options | |
|
(DFS-150) Downward Facing Vertical Stand. Includes mounting plate, target table, foot base. | 160-9013 |
| (BASE-SS-ROLL) Solar Simulator Base Assembly with Castors | 165-8048 |
| Complete Package Options | |
|
(SS-150A/DFS) SS150 with Downward Facing Stand.Includes SS150, Power Supply, External Igniter and DFS-150 | 160-9021 |
濾鏡選項
| Item number | Description |
| Filter Holder | |
| 100-8035 | 3” filter holder for SS style filters, 2.5 mm thick maximum |
| Spectral Filters—near 0 degree—3” filter slot in homogenizer | |
| 640-9005 | 75 mm Mesh 34% Neutral Density Filter with Holder |
| 640-9006 | 75 mm Mesh 49% Neutral Density Filter with Holder |
| 640-9007 | 75 mm Mesh 71% Neutral Density Filter with Holder |
| 640-9011 | Visible longpass filter 400±6 nm, with Holder |
| 640-9012 | Hot Mirror for UV applications, 3” Square |
| 640-8014 | Pass UVA, block UVB, VIS, and IR |
| 640-9014 | Pass VIS-IR, Block UVA+B – 0 degree option (WG395) |
| 640-9017 | Pass UVA-VIS, IR ; block UVB |
| 640-9016 | Pass UVA+B, Block VIS, IR – 0 degree option |
| 640-8012 | Pass UVA+B, pass some IR Block VIS – 0 degree option |
| 640-0120 | Pass UVB Block UVA and above |
| Air mass filter – near 0 degree incidence | |
| 160-8020 | Air Mass AM0 filter for SS serious solar (Standard Range) |
| 160-8022 | Air Mass AM0 filter for SS serious solar (Standard Range) |
| 160-8024 | Air Mass AM0 filter for SS serious solar (Standard Range) |
| 160-8026 | Air Mass AM0 filter for SS serious solar (Standard Range) |
| 160-8028 | Air Mass AM0 filter for SS serious solar (Standard Range) |
| Homogenizer IR water filter | |
| 100-8018 | IR water filter, 3” Stainless steel, Fused Silica Window |
| Beam turning filter – 45 degrees – used with 165-8034 | |
| 640-8004 | Pass VIS, block UV, IR – CTBT option |
| 640-8008 | Pass IR, Block VIS, UV |
| 640-8011 | Pass UVA+B, block VIS, IR – CTBT option |
