名稱： 帶通濾光片600-699納米Alluxa
型號： 600-10 OD4 Bandpass Filter
品牌： Alluxa
Alluxa高性能濾光片以**的設計工藝和鍍膜過程控制,使Alluxa濾光片具有行業內**的透過率,**的截至深度和波長**性,其中通過SIRRUS™離子束沉積硬鍍膜技術,也使得Alluxa濾光片具有使用壽命長,高損傷閾值,以及**的批次穩定性等特點,并已經廣泛應用于生物熒光系統、拉曼系統、量子、雷達通訊等精密光學系統中。
Alluxa除了豐富的標準品,同時提供定制服務,并且定制成本在行業內有相當大的競爭力。
ULTRA系列帶通濾光片

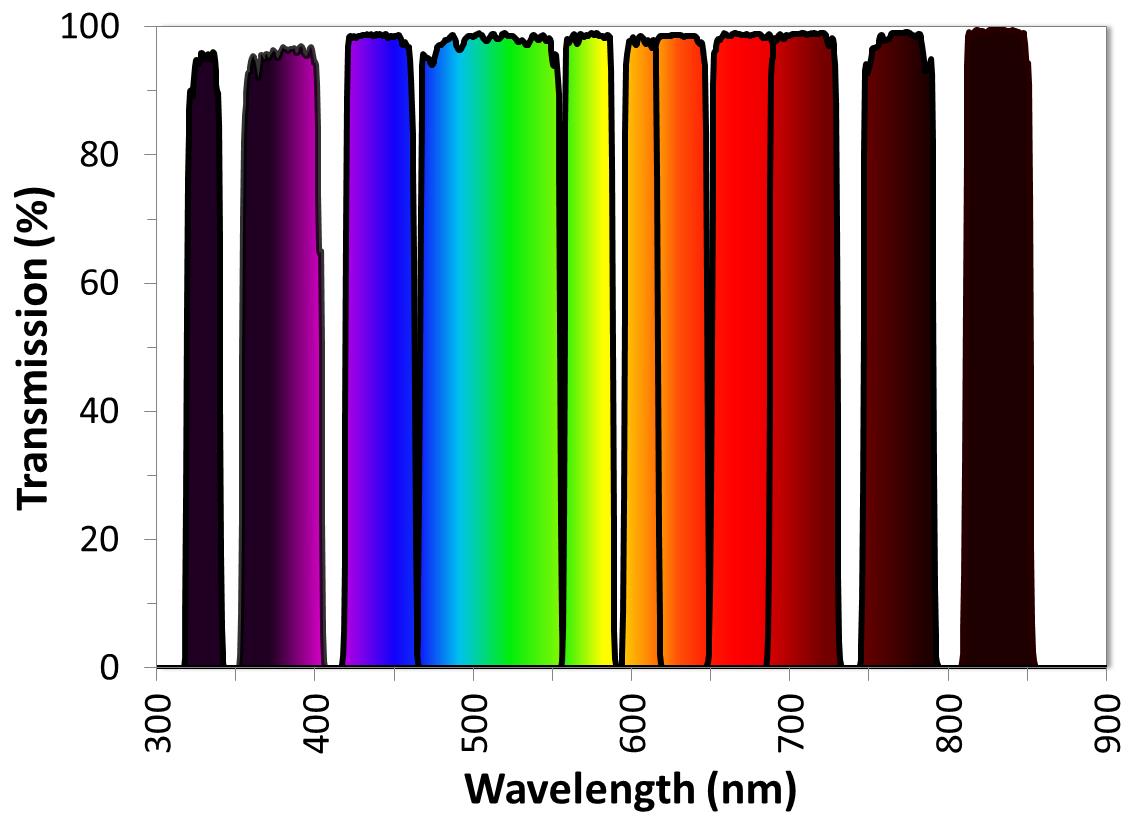

圖1.各種ULTRA系列帶通濾波器，顯示從紫外到紅外的高透射率。
通過精密波長控制，超陡邊緣，深度阻擋和業界**傳輸水平的組合，Alluxa的ULTRA系列硬涂層薄膜光學帶通濾波器將優化各種儀器的性能。
每個ULTRA系列帶通濾波器都旨在超越**儀器的要求。所有產品都經過嚴格測試，以確保過濾器性能達到或超過挑戰性的規格。
ULTRA系列帶通濾光片非常適用于熒光顯微鏡，流式細胞儀，拉曼光譜，激光雷達和光譜成像等應用。提供單頻帶，多頻帶，寬帶，超窄帶和窄帶濾波器。
根據系統的波長范圍和要求，ULTRA系列帶通濾波器可以定制設計，以滿足以下一個或多個具有挑戰性的規范：
? 透過率可達99%
? Up to 99% transmission for passbands in the visible range
? 通過設計達截至深度高達OD10
? Up to OD10 wide range out of band blocking by design
? 陡度：0.5% CWL @ 50%T～OD6
? Edge transitions as steep as 0.5% of CWL from 50% T to OD6
? 波長范圍250nm～13µm可選
? CWL at any wavelength from the UV to the mid IR (～250 nm to 13 µm)
? 波長精度誤差±0.25%CWL
? Tolerances as tight as ± 0.25% of CWL
? 透過波前差(RMS)： 極優0.01λper inch @ 632.8 nm
? TWE as low as 0.01 wave RMS/inch measured at 632.8 nm
用于熒光應用的多頻帶濾光片

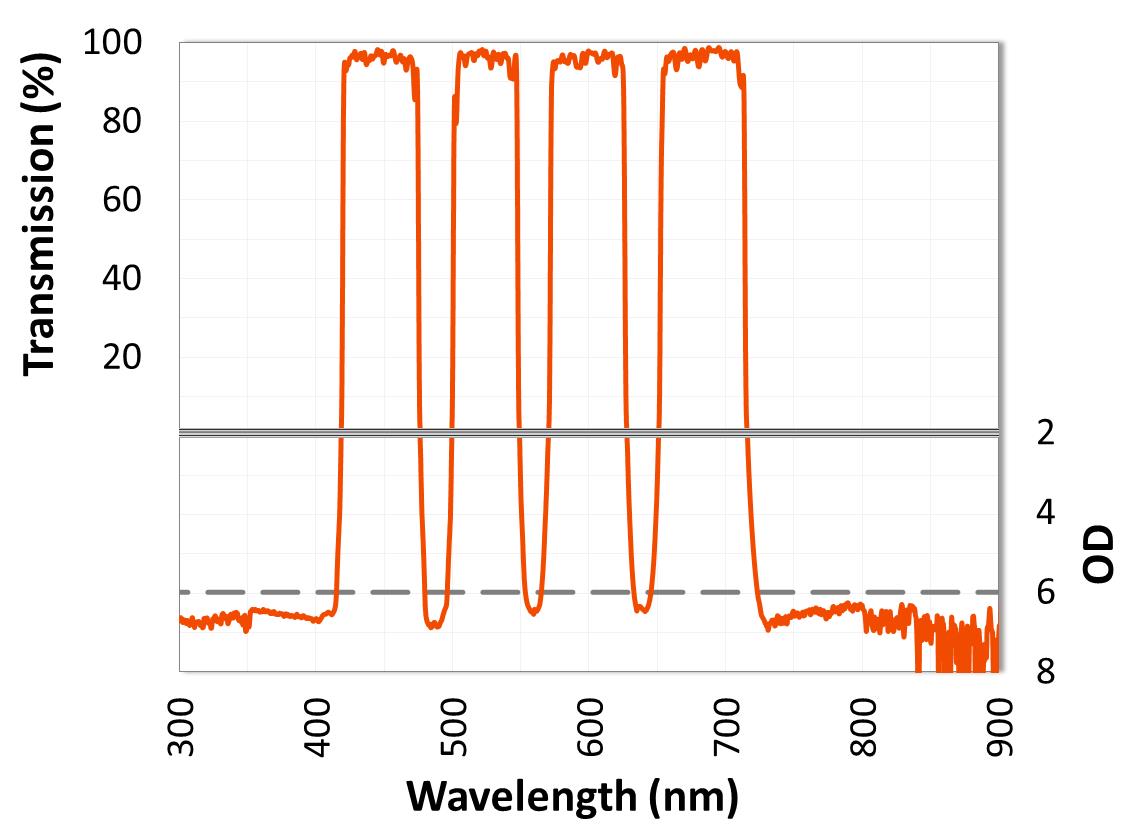

圖2. ULTRA系列多頻帶濾波器，具有陡峭邊緣，高傳輸和OD6帶外截至。
ULTRA系列多頻帶通濾光片可以設計為10個以上的透過波段，波段之間的OD值大于8，超高的截至陡度，高達98％的透過率。 它們非常適合用作熒光技術中的激發或發射濾光片，要求在單個樣本中同時檢測多個熒光團。
創新薄膜涂層工藝帶來的質量和一致性

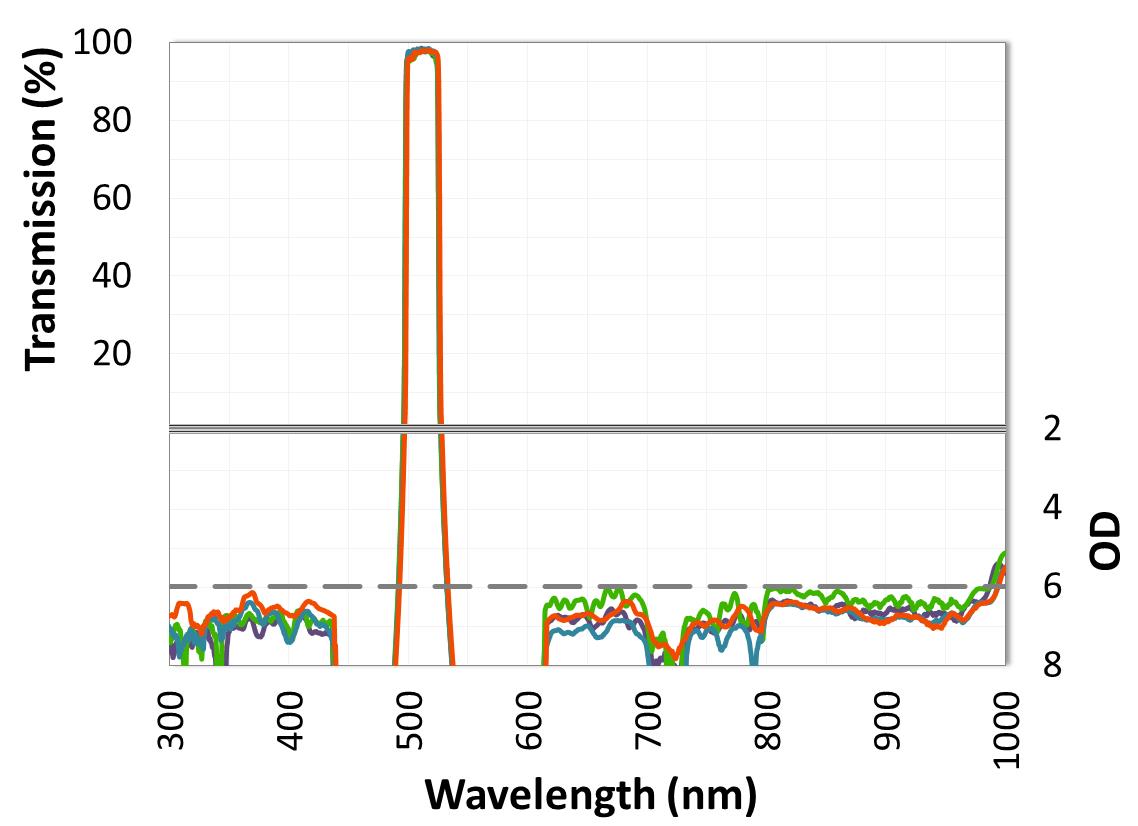

圖3. ULTRA系列濾光片的波長控制，傳輸和截至在幾種不同的涂層運行中具有高度可重復性。
Alluxa薄膜濾光片和介質反射鏡均采用我們的SIRRUS™離子束沉積硬鍍膜技術，這使我們能夠在多個不同的涂層運行中可靠地重復生產相同的高性能薄膜帶通濾波器，這意味著您的所有系統性能始終如一。
Alluxa帶通濾光片600-699nm
| 600-10 OD4 Bandpass Filter | |
| Item Number | 7426 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 600 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 585 nm, 615 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 604-50 OD6 ULTRA Bandpass Filter | |
| Item Number | 7224 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 604 nm ± 2.0 nm |
| FWHM | 50 nm Nominal |
| Transmission Band(s) | 582 to 626 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 569 nm, 640 to 900 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TagRFP |
| Alternate Fluorophore(s) | 5-TAMRA (pH7), Alexa Fluor® 568, Amplex UltraRed, ATTO 565, ATTO RHO11, ATTO RHO3B, BO-PRO-3, BOBO-3, CF™568, CF™570, DsRed, DsRed Express T1, DsRed Tandem Dimer2, dTomato, FluoSpheres® Red, FusionRed, KFP-Red, Lissamine™ Rhodamine, LOLO-1, Magnesium Orange, mApple, Merocyanine 540, MitoTracker® Orange, mStrawberry, mTangerine, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, Rhod-2, Rhodamine (phalloidin), Rhodamine Red™-X, Spectrum Orange, tdTomato, TRITC, TurboRFP, Alexa Fluor® 610 R-PE |
| 607-40 OD6 Bandpass Filter | |
| Item Number | 7147 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 607 nm ± 3.0 nm |
| FWHM | 40 nm Nominal |
| Transmission Band(s) | 590 to 624 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 574 nm, 647 to 925 nm; OD2: 940 to 1000 nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3.5 |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 568, Amplex UltraRed, AsRed2, ATTO 565, ATTO RHO11, ATTO RHO12, ATTO RHO3B, ATTO Thio12, BO-PRO-3, BOBO-3, Calcein Red-Orange, Carboxy SNARF®-1 (pH 6), Carboxy SNARF®-1 (pH 9), CellTrace™ Calcein Red-Orange, CellTracker™ Red CMTPX, CF™568, CF™570, CF™583, DHPE Texas Red®, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-590, FluoSpheres® Red, FusionRed, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, KFP-Red, Lissamine™ Rhodamine, LysoTracker® Red, mApple, MitoTracker® Red, mRFP1, mStrawberry, mTangerine, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, PromoFluor-568, Propidium iodide, ReAsH, Resorufin, Rhodamine Red™-X, Spectrum Orange, Sulforhodamine 101, TagRFP, tdTomato, Texas Red® R-PE, TurboFP602, X-rhod-1 |
| 610-10 OD4 Bandpass Filter | |
| Item Number | 7429 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 610 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 595 nm, 625 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 614-26 OD6 ULTRA Bandpass Filter | |
| Item Number | 7629 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 614 nm ± 2.0 nm |
| FWHM | 26 nm Nominal |
| Transmission Band(s) | 603 to 625 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 597 nm, 631 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | mCherry |
| 614-54 OD6 ULTRA Bandpass Filter | |
| Item Number | 7703 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 614 nm ± 2.0 nm |
| FWHM | 54 nm Nominal |
| Transmission Band(s) | 590 to 638 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 580 nm, 647 to 875 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3.5 |
| 620-31 OD6 ULTRA Bandpass Filter | |
| Item Number | 7133 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 620 nm ± 2.0 nm |
| FWHM | 31 nm Nominal |
| Transmission Band(s) | 607 to 633 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 602 nm, 639 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | mCherry |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 594, AsRed2, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), Calcium Crimson™, CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, Cresyl Violet perchlorate, Crystal Violet (glycerol), DHPE Texas Red®, FluoSpheres® Red, FusionRed, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, MitoTracker® Red, mKate2, mPlum, mRFP1, Nile Red, PromoFluor-594, ReAsH, Spectrum Red, Texas Red® (Dextran), Texas Red® R-PE, Texas Red®-X, X-rhod-1 |
| 620-10 OD4 Bandpass Filter | |
| Item Number | 7430 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 620 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 605 nm, 635 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 622-36 OD6 ULTRA Bandpass Filter | |
| Item Number | 7152 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 622 nm ± 2.0 nm |
| FWHM | 36 nm Nominal |
| Transmission Band(s) | 606 to 638 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 360 to 588 nm, 656 to 750 nm, 750 to 850 nm; OD3: 300 to 360 nm, 850 to 1000 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | APC |
| Alternate Fluorophore(s) | Alexa Fluor® 647, ATTO 635, ATTO 647, BODIPY® 650/665-X, CF™640R, CF™647, CypHer5 (pH 4.67), DDAO, DiD, DRAQ5™, DY-630, DY-631, DY-633, DY-635, DY-636, EVOblue™-30, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Spectrum Far Red, SYTOX® Red, TO-PRO®-3, TOTO®-3, Vybrant® DyeCycle™ Ruby, 5-CNF, Alexa Fluor® 633, ATTO RHO14, Carboxynapthofluorescein, CellTrace™ Far Red, CF™633, Cy®5, E2-Crimson, FluoSpheres® Crimson, HCS LipidTOX™ Deep Red Neutral Lipid Stain, NIR4, NirFP, PromoFluor-633, Squarylium Dye III, SYTO® 61 |
| 622-25 OD6 ULTRA Bandpass Filter | |
| Item Number | 7593 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 622 nm ± 2.0 nm |
| FWHM | 25 nm Nominal |
| Transmission Band(s) | 612 to 632 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 605 nm, 639 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® (Dextran) |
| 622-40 OD6 ULTRA Bandpass Filter | |
| Item Number | 7676 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 622 nm ± 2.0 nm |
| FWHM | 40 mm Nominal |
| Transmission Band(s) | 605 to 639 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 200 to 593 nm, 651 to 850 nm; OD3: 850 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | 5-ROX |
| 625-32 OD6 ULTRA Bandpass Filter | |
| Item Number | 7140 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 625 nm ± 2.0 nm |
| FWHM | 32 nm Nominal |
| Transmission Band(s) | 611 to 639 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 599 nm, 649 to 900 nm; OD5: 300 to 599 nm, 649 to 900 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® (Dextran) |
| Alternate Fluorophore(s) | Alexa Fluor® 594, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), Calcium Crimson™, CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, Cresyl Violet perchlorate, Crystal Violet (glycerol), DHPE Texas Red®, FluoSpheres® Red, FusionRed, HcRed1, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, mCherry, mKate2, mRFP1, PromoFluor-594, ReAsH, Spectrum Red, TagFP635, Texas Red® R-PE, Texas Red®-X, TurboFP650, Alexa Fluor® 610 R-PE, SYTOX® Advanced Dead Cell Stain |
| 625-45 OD6 ULTRA Bandpass Filter | |
| Item Number | 7208 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 625 nm ± 2.0 nm |
| FWHM | 45 nm Nominal |
| Transmission Band(s) | 605 to 645 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 592 nm, 660 to 800 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| Alternate Fluorophore(s) | Alexa Fluor® 647, Alexa Fluor® 660, ATTO 635, ATTO 647, ATTO OXA12, BODIPY® 650/665-X, C5-Thiacyanine, CellMask™ Deep Red, CF™640R, CF™647, CypHer5 (pH 4.67), DDAO, DiD, DRAQ5™, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, FluoSpheres® Dark Red, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle™ Ruby, 5-CNF, Carboxynapthofluorescein, NirFP, ATTO 665 |
| 628-37 OD6 ULTRA Bandpass Filter | |
| Item Number | 7144 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 628 nm ± 2.0 nm |
| FWHM | 37 nm Nominal |
| Transmission Band(s) | 612 to 644 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 598 nm, 659 to 925 nm; OD3: 925 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5, mCherry |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 594, Alexa Fluor® 647, Alexa Fluor® 660, ATTO 590, ATTO 635, ATTO 647, ATTO OXA12, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® 650/665-X, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), C5-Thiacyanine, CellMask™ Deep Red, CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, CF™640R, CF™647, CypHer5 (pH 4.67), DHPE Texas Red®, DiD, DRAQ5™, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, FluoSpheres® Dark Red, FluoSpheres® Red, HcRed1, HCS CellMask™ Deep Red, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, Katushka2S, LIVE/DEAD® Fixable Far Red Dead Cell Stain, LIVE/DEAD® Fixable Red Dead Cell Stain, MitoTracker® Deep Red, mKate2, mPlum, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-594, PromoFluor-647, Quasar® 670, ReAsH, Spectrum Far Red, Spectrum Red, SYTO® 60, SYTO® 62, TagFP635, Texas Red® (Dextran), Texas Red®-X, TurboFP650, Vybrant® DyeCycle™ Ruby, 5-CNF, Carboxynapthofluorescein, E2-Crimson, NirFP, ATTO 665 |
| 632-22 OD6 ULTRA Bandpass Filter | |
| Item Number | 7696 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 632 nm ± 2.0 nm |
| FWHM | 22 nm Nominal |
| Transmission Band(s) | 623 to 641 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 607 nm, 657 to 850 nm; OD4: 850 to 925 nm; OD2: 925 to 1100 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| 632-10 OD4 Bandpass Filter | |
| Item Number | 7433 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 632 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 617 nm, 647 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 635-22 OD6 ULTRA Bandpass Filter | |
| Item Number | 7183 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 635 nm ± 2.0 nm |
| FWHM | 22 nm Nominal |
| Transmission Band(s) | 626 to 644 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 610 nm, 660 to 850 nm; OD4: 850 to 925 nm; OD2: 925 to 1100 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| Alternate Fluorophore(s) | Alexa Fluor® 647, APC, ATTO 635, ATTO 647, ATTO OXA12, BODIPY® 650/665-X, C5-Thiacyanine, CF™640R, CF™647, DDAO, DiD, DRAQ5™, DY-630, DY-631, DY-633, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTOX® Red, SYTO® 60, SYTO® 62, TO-PRO®-3, TOTO®-3, Vybrant® DyeCycle™ Ruby, PromoFluor-633 |
| 640-19 OD6 ULTRA Bandpass Filter | |
| Item Number | 7594 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 640 nm ± 2.0 nm |
| FWHM | 19 nm Nominal |
| Transmission Band(s) | 633 to 647 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 625 nm, 655 to 925 nm; OD2: 925 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| 640-77 OD6 Bandpass Filter | |
| Item Number | 7095 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 640 nm ± 3.5 nm |
| FWHM | 77 nm Nominal |
| Transmission Band(s) | 605 to 675 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 542 to 582 nm; OD5: 490 to 592 nm, 696 to 925 nm; OD2: 400 to 490 nm, 925 to 1050 nm; OD1: 1050 to 1100 nm, 200 to 400 nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® R-PE |
| Alternate Fluorophore(s) | ATTO RHO12, Carboxy SNARF®-1 (pH 9), Crystal Violet (glycerol), DHPE Texas Red®, FluoSpheres® Red, FusionRed, Nile Red, Propidium iodide, TurboFP602, Alexa Fluor® 610 R-PE, DY-520, DY-520XL MegaStokes, PromoFluor-520LSS, SYTOX® Advanced Dead Cell Stain, Tetra-t-butylazaporphine |
| 640-10 OD4 Bandpass Filter | |
| Item Number | 7435 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 640 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 625 nm, 655 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 647-10 OD4 Bandpass Filter | |
| Item Number | 7436 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 647 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 632 nm, 662 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 650-20 OD6 ULTRA Bandpass Filter | |
| Item Number | 7203 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 650 nm ± 2.0 nm |
| FWHM | 20 nm Nominal |
| Transmission Band(s) | 642 to 658 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 629 nm, 671 to 925 nm; OD3: 925 to 1100 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| Alternate Fluorophore(s) | Alexa Fluor® 660, Alexa Fluor® 680 APC, ATTO OXA12, C5-Thiacyanine, CellMask™ Deep Red, CF™660C, CF™660R, DRAQ5™, DY-647, DY-650, DY-651, DY-656, FluoSpheres® Dark Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, Methylene Blue, NIR2, PromoFluor-647, PromoFluor-670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle™ Ruby |
| 650-10 OD4 Bandpass Filter | |
| Item Number | 7437 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 650 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 635 nm, 665 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 652.5-15 OD6 ULTRA Bandpass Filter | |
| Item Number | 7697 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 652.5 nm ± 2.0 nm |
| FWHM | 15 nm Nominal |
| Transmission Band(s) | 647 to 658 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 510 to 637 nm, 668 to 750 nm; OD5: 200 to 510 nm, 750 to 1020 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | CellMask™ Deep Red |
| 660-10 OD4 Bandpass Filter | |
| Item Number | 7441 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 660 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 645 nm, 675 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 664-24 OD6 ULTRA Bandpass Filter | |
| Item Number | 7136 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 664 nm ± 2.0 nm |
| FWHM | 24 nm Nominal |
| Transmission Band(s) | 654 to 674 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 649 nm, 679 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5.5 |
| Alternate Fluorophore(s) | Alexa Fluor® 660, Alexa Fluor® 680 APC, CF™660C, CF™660R, HCS NuclearMask™ Deep Red, Methylene Blue, NIR2, PromoFluor-670, ATTO 680, CF™680, CF™680R, DY-680, DY-681, HiLyte™ Fluor 680, PromoFluor-680, ATTO 665, DY-673, DY-675, DY-676, Phthalocyanine, Alexa Fluor® 680 |
| 666-33 OD6 ULTRA Bandpass Filter | |
| Item Number | 7723 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 666 nm ± 2.0 nm |
| FWHM | 33 nm Nominal |
| Transmission Band(s) | 652 to 680 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 640 nm, 689 to 800 nm; OD5: 800 to 850 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| 668.5-30 OD6 ULTRA Bandpass Filter | |
| Item Number | 7153 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 668.5 nm ± 2.0 nm |
| FWHM | 30 nm Nominal |
| Transmission Band(s) | 656 to 681 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 360 to 575 nm, 575 to 636 nm, 699 to 850 nm; OD3: 300 to 360 nm, 850 to 1000 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | APC |
| Alternate Fluorophore(s) | Alexa Fluor® 647, ATTO 635, ATTO 647, BODIPY® 650/665-X, CF™640R, CF™647, CypHer5 (pH 4.67), DDAO, DiD, DRAQ5™, DY-630, DY-631, DY-633, DY-635, DY-636, EVOblue™-30, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Spectrum Far Red, SYTOX® Red, TO-PRO®-3, TOTO®-3, Vybrant® DyeCycle™ Ruby, 5-CNF, Alexa Fluor® 633, ATTO RHO14, Carboxynapthofluorescein, CellTrace™ Far Red, CF™633, Cy®5, E2-Crimson, FluoSpheres® Crimson, HCS LipidTOX™ Deep Red Neutral Lipid Stain, NIR4, NirFP, PromoFluor-633, Squarylium Dye III, SYTO® 61 |
| 671-10 OD4 Bandpass Filter | |
| Item Number | 7442 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 671 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 656 nm, 686 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 677-23 OD6 Bandpass Filter | |
| Item Number | 7155 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 677 nm ± 3.5 nm |
| FWHM | 23 nm Nominal |
| Transmission Band(s) | 668 to 686 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 360 to 648 nm, 703 to 800 nm, 800 to 850 nm; OD3: 300 to 360 nm, 850 to 1000 nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Alexa Fluor® 700 |
| Alternate Fluorophore(s) | ATTO 680, ATTO 700, C7-Oxacyanine, CF™680, CF™680R, DY-680, DY-681, DY-700, DY-701, HiLyte™ Fluor 680, IRDye® 700DX, PromoFluor-680, PromoFluor-700, Quasar® 705 |
| 680-30 OD6 ULTRA Bandpass Filter | |
| Item Number | 7230 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 680 nm ± 2.0 nm |
| FWHM | 30 nm Nominal |
| Transmission Band(s) | 668 to 693 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 650 nm, 710 to 900 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| Alternate Fluorophore(s) | Alexa Fluor® 647, APC, ATTO 635, ATTO 647, ATTO OXA12, BODIPY® 650/665-X, C5-Indocyanine, C5-Thiacyanine, CellMask™ Deep Red, CF™640R, CF™647, CypHer5 (pH 4.67), DDAO, DiD, DRAQ5™, DY-630, DY-631, DY-633, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, FluoSpheres® Dark Red, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, Methylene Blue, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTOX® Red, SYTO® 60, SYTO® 62, TO-PRO®-3, TOTO®-3, Vybrant® DyeCycle™ Ruby |
| 680-10 OD4 Bandpass Filter | |
| Item Number | 7446 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 680 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 665 nm, 695 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 683-39 OD6 ULTRA Bandpass Filter | |
| Item Number | 7145 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 683 nm ± 2.0 nm |
| FWHM | 39 nm Nominal |
| Transmission Band(s) | 666 to 700 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 653 nm, 714 to 775 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
| Alternate Fluorophore(s) | Alexa Fluor® 647, Alexa Fluor® 660, ATTO 635, ATTO 647, ATTO OXA12, BODIPY® 650/665-X, C5-Thiacyanine, CellMask™ Deep Red, CF™640R, CF™647, CypHer5 (pH 4.67), DiD, DRAQ5™, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, FluoSpheres® Dark Red, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle™ Ruby, 5-CNF, Carboxynapthofluorescein, NirFP, ATTO 665 |
| 690-10 OD4 Bandpass Filter | |
| Item Number | 7448 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 690 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 675 nm, 705 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 692-46 OD6 ULTRA Bandpass Filter | |
| Item Number | 7642 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 692 nm ± 2.0 nm |
| FWHM | 46 nm Nominal |
| Transmission Band(s) | 672 to 712 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 520 to 660 nm, 725 to 900 nm; OD5: 900 to 980 nm; OD3: 250 to 520 nm; OD2: 980 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®5 |
010-62029100
100040
